IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

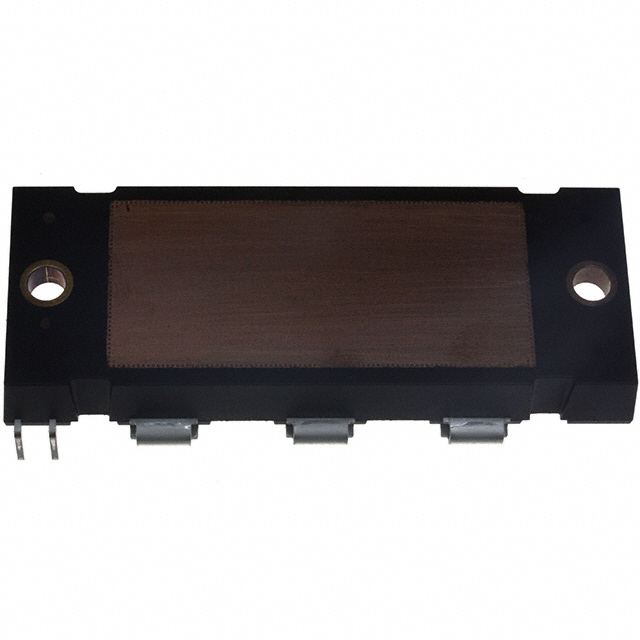

ON Semiconductor FP7G75US60
MODULE IGBT 600V 75A EPM7
0
ON Semiconductor FP7G50US60
MODULE IGBT 600V 50A EPM7
0
ON Semiconductor FP7G100US60
MODULE SPM 600V 100A EPM7
0
Microsemi Corporation APTGV75H60T3G
IGBT NPT BST CHOP FULL BRDG SP3
0
Microsemi Corporation APTGV50H60T3G
IGBT NPT BST CHOP FULL BRDG SP3
0
Microsemi Corporation APTGV50H120T3G
IGBT NPT BST CHOP FULL BRDG SP3
0
Microsemi Corporation APTGV50H120BTPG
IGBT NPT BST CHOP FULL BRDG SP6P
0
Microsemi Corporation APTGV30H60T3G
IGBT NPT BST CHOP FULL BRDG SP3
0
