IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

Infineon Technologies FS100R17PE4BOSA1

IGBT MODULE VCES 600V 100A

171.9

Powerex, Inc. CM100TL-12NF

IGBT MOD 6PAC 600V 100A NF SER

171.72

Vishay / Semiconductor - Diodes Division VS-GT300YH120N

IGBT 1200V 341A 1042W DIAP

171.46

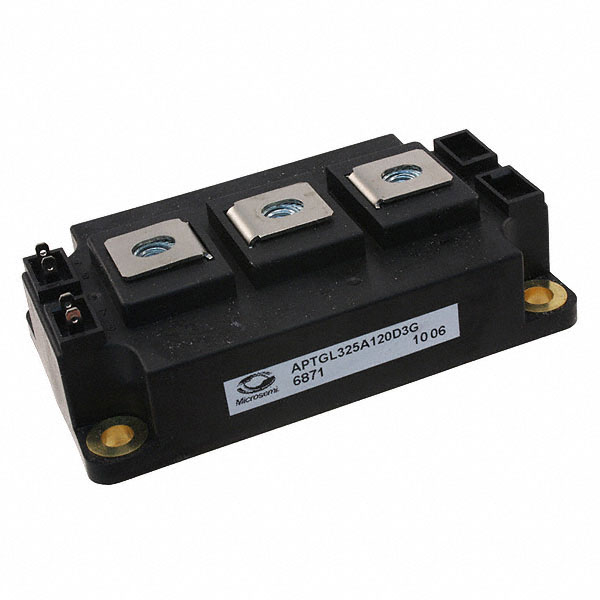

Microsemi Corporation APTGL325A120D3G

IGBT4 PHASE LEG 1200V 420A D3

171.2

Microsemi Corporation APTGT400U170D4G

IGBT 1700V 800A 2080W D4

171.16

Infineon Technologies F3L300R12MT4B23BOSA1

MOD IGBT MED POWER ECONOD-3

170.64

Infineon Technologies F3L300R12MT4B22BOSA1

MOD IGBT MED POWER ECONOD-3

170.64

Infineon Technologies F3L300R12ME4B23BOSA1

IGBT MODULE VCES 650V 300A

170.64
