Images are for reference only. See Product Specifications for product details
Wurth Electronics Inc. 691412320009M

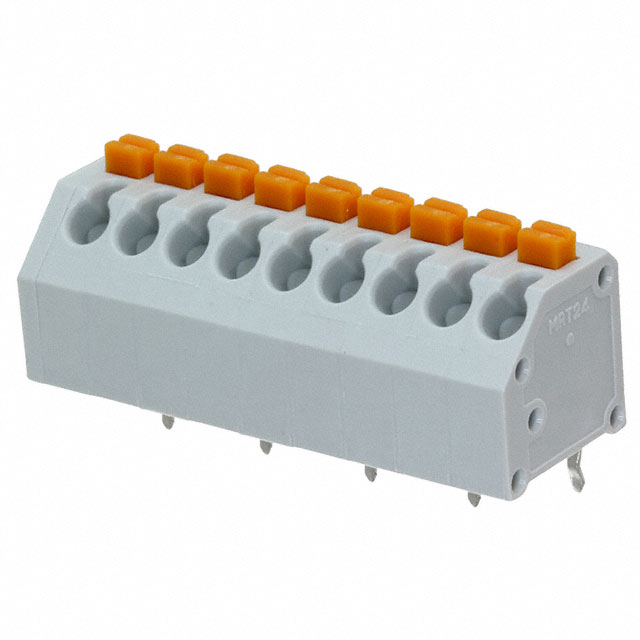

TERM BLOCK 9POS 45DEG 3.81MM PCB
- Manufacturer
- Wurth Electronics Inc.
- Datasheet
- Price
- 2.28
- Stock
- 0
Product Details
- Current
- 10A
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Voltage
- 300V
- Positions Per Level
- 12
- Features
- Interlocking (Side)
- Operating Temperature
- -40°C ~ 105°C
- Packaging
- Bulk
- Clamp Material - Plating
- Brass
- Wire Gauge
- 16-24 AWG
- Screw Material - Plating
- Steel
- Part Status
- Active
- Contact Material - Plating
- Brass - Tin Plated
- Screw Thread
- -
- Mounting Type
- Through Hole
- Torque - Screw
- 0.4 Nm (3.5 Lb-In)
- Color
- Black
- Number of Levels
- 1
- Pitch
- 0.197" (5.00mm)
- Wire Termination
- Screw - Rising Cage Clamp
- Series
- Eurostyle ESE 39543
- Mating Orientation
- Vertical with Board
