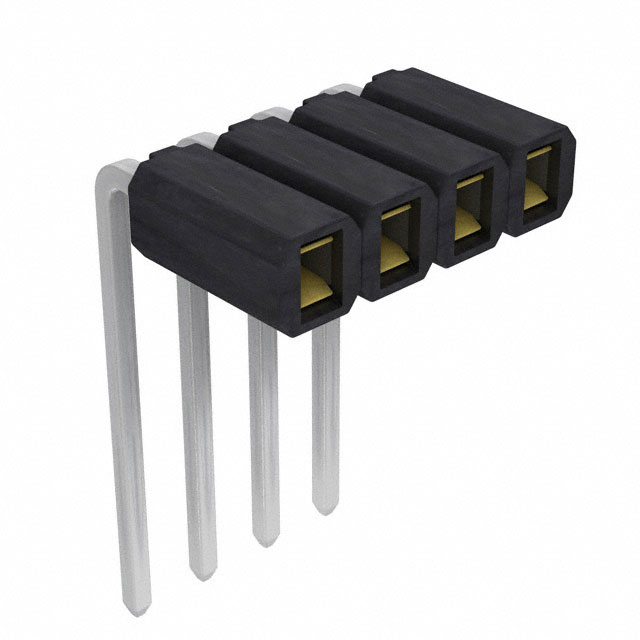

Images are for reference only. See Product Specifications for product details
Samtec, Inc. SSA-104-W-G-RA
CONN RCPT 4POS 0.1 GOLD PCB R/A
- Manufacturer
- Samtec, Inc.
- Datasheet
- Price
- 0
- Stock
- 0
Product Details
- Mounting Type
- Through Hole, Right Angle
- Row Spacing - Mating
- -
- Connector Type
- Receptacle, Breakaway
- Contact Finish - Post
- -
- Fastening Type
- Push-Pull
- Contact Length - Post
- 0.575" (14.61mm)
- Style
- Board to Board
- Number of Rows
- 1
- Current Rating (Amps)
- -
- Series
- SSA
- Pitch - Mating
- 0.100" (2.54mm)
- Operating Temperature
- -55°C ~ 125°C
- Features
- -
- Voltage Rating
- 1000V
- Mated Stacking Heights
- -
- Packaging
- Bulk
- Contact Material
- Phosphor Bronze
- Contact Finish - Mating
- Gold
- Part Status
- Discontinued at Digi-Key
- Insulation Color
- Black
- Number of Positions Loaded
- All
- Termination
- Wire Wrap
- Insulation Height
- 0.100" (2.54mm)
- Material Flammability Rating
- UL94 V-0
- Applications
- -
- Ingress Protection
- -
- Contact Finish Thickness - Post
- -
- Contact Type
- Female Socket
- Insulation Material
- Polyethylene Terephthalate (PET), Polyester
- Contact Finish Thickness - Mating
- 10.0µin (0.25µm)
- Contact Shape
- Square
- Number of Positions
- 3
