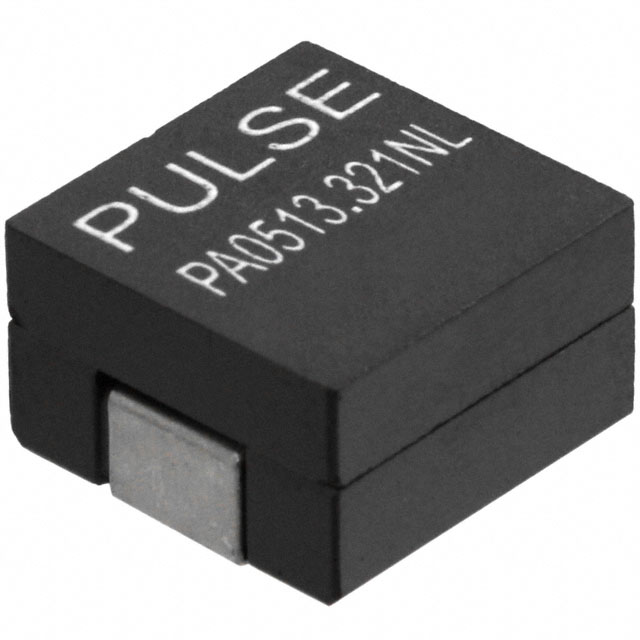

Pulse Electronics Power PA0513.321NLT

Product Details

Ratings

-

Current - Saturation

33A

Q @ Freq

-

Current Rating (Amps)

20A

Packaging

Cut Tape (CT)

Height - Seated (Max)

0.264" (6.70mm)

Shielding

Shielded

Operating Temperature

-40°C ~ 125°C

Tolerance

±20%

Supplier Device Package

-

Inductance

2.2µH

Frequency - Self Resonant

-

Part Status

Active

Inductance Frequency - Test

200kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Material - Core

Ferrite

Type

Wirewound

Size / Dimension

0.551" L x 0.508" W (14.00mm x 12.90mm)

Series

ASPI-1367

DC Resistance (DCR)

4.2mOhm Max
