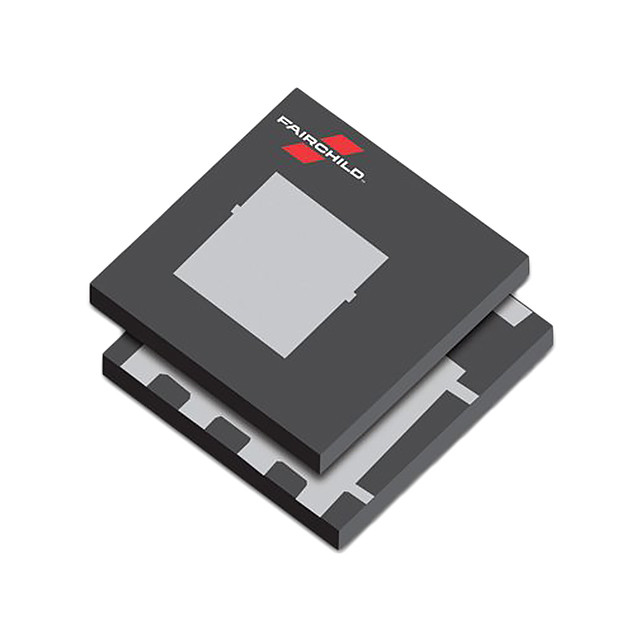

Images are for reference only. See Product Specifications for product details
ON Semiconductor FDMC8010DC
MOSFET 2 N-CH 30V 157A 8-PQFN
- Manufacturer
- ON Semiconductor
- Datasheet
- Price
- 0
- Stock
- 24
Product Details
- Operating Temperature
- -55°C ~ 175°C (TJ)
- Rds On (Max) @ Id, Vgs
- 2.8mOhm @ 40A, 10V
- Series
- Automotive, AEC-Q101
- Power Dissipation (Max)
- 68W (Tc)
- FET Type
- N-Channel
- Supplier Device Package
- 5-DFN (5x6) (8-SOFL)
- Packaging
- Digi-Reel®
- Gate Charge (Qg) (Max) @ Vgs
- 35nC @ 10V
- Vgs (Max)
- ±20V
- Drain to Source Voltage (Vdss)
- 40V
- Technology
- MOSFET (Metal Oxide)
- Input Capacitance (Ciss) (Max) @ Vds
- 2100pF @ 20V
- FET Feature
- -
- Current - Continuous Drain (Id) @ 25°C
- 110A (Tc)
- Part Status
- Active
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
- Mounting Type
- Surface Mount, Wettable Flank
- Package / Case
- 8-PowerTDFN, 5 Leads
- Vgs(th) (Max) @ Id
- 2V @ 250µA
