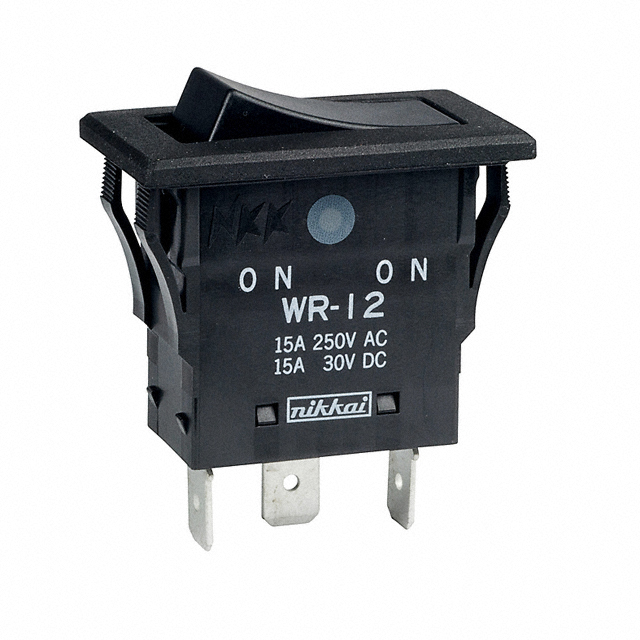

Images are for reference only. See Product Specifications for product details
NKK Switches WR12AFN
SWITCH ROCKER SPDT 15A 125V
- Manufacturer
- NKK Switches
- Datasheet
- Price
- 12
- Stock
- 14
Product Details
- Electrical Life
- 10,000 Cycles
- Illumination Type, Color
- Incandescent, Orange
- Mechanical Life
- 30,000 Cycles
- Illumination Voltage (Nominal)
- 12 VAC
- Switch Function
- On-On
- Actuator Marking
- No Marking
- Termination Style
- Solder Lug
- Series
- MLW
- Ingress Protection
- -
- Circuit
- SPDT
- Voltage Rating - AC
- 125V
- Features
- Epoxy Sealed Terminals
- Voltage Rating - DC
- 30V
- Packaging
- Tray
- Color - Actuator/Cap
- Orange
- Part Status
- Active
- Current Rating (Amps)
- 5A (AC), 3A (DC)
- Actuator Type
- Concave (Curved) - Illuminated
- Operating Temperature
- -10°C ~ 50°C
- Mounting Type
- Panel Mount, Snap-In
- Panel Cutout Dimensions
- Rectangular - 18.70mm x 16.70mm
