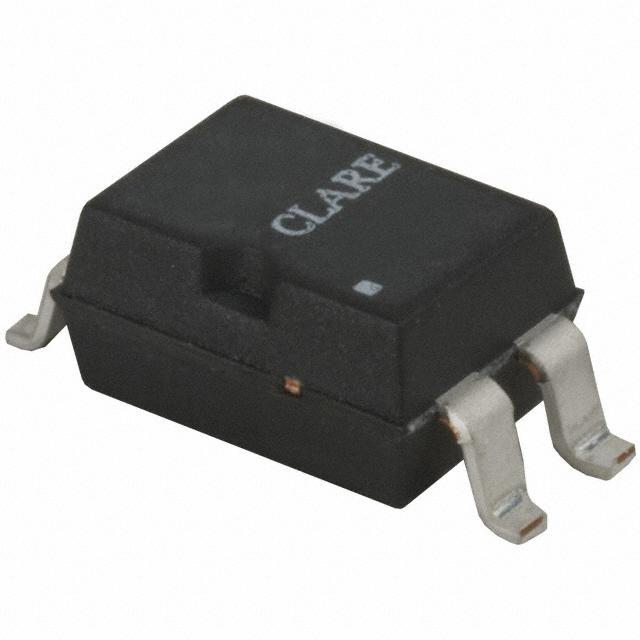

Images are for reference only. See Product Specifications for product details
IXYS Integrated Circuits Division CPC1301GR
OPTOISOLTR 5KV DARLINGTON 4-SMD
- Manufacturer
- IXYS Integrated Circuits Division
- Datasheet
- Price
- 0.51
- Stock
- 0
Product Details
- Number of Channels
- 1
- Current - DC Forward (If) (Max)
- 20mA
- Voltage - Isolation
- 3750Vrms
- Vce Saturation (Max)
- -
- Operating Temperature
- -40°C ~ 85°C
- Series
- -
- Rise / Fall Time (Typ)
- -
- Packaging
- Tape & Reel (TR)
- Voltage - Output (Max)
- 18V
- Input Type
- DC
- Supplier Device Package
- 8-SMD
- Output Type
- Darlington with Base
- Current - Output / Channel
- 60mA
- Part Status
- Active
- Current Transfer Ratio (Max)
- 2600% @ 1.6mA
- Mounting Type
- Surface Mount
- Current Transfer Ratio (Min)
- 500% @ 1.6mA
- Package / Case
- 8-SMD, Gull Wing
- Voltage - Forward (Vf) (Typ)
- 1.4V
- Base Part Number
- 6N139
- Turn On / Turn Off Time (Typ)
- 200ns, 2µs
