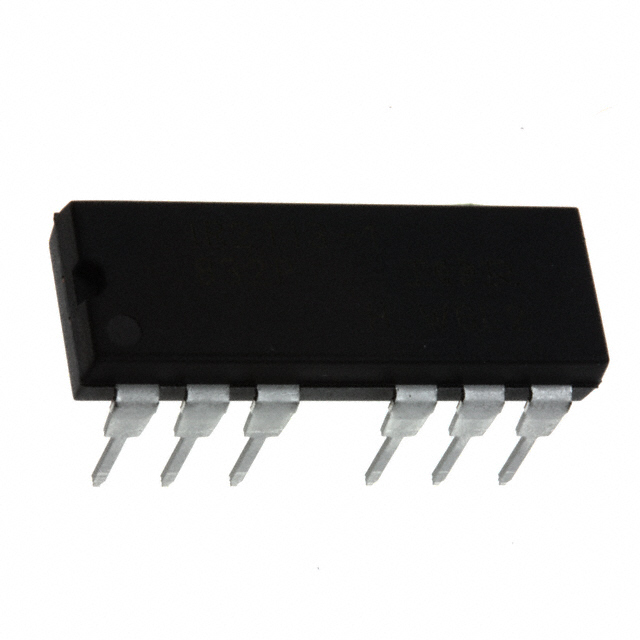

Images are for reference only. See Product Specifications for product details
Infineon Technologies IR2113-1PBF
IC MOSFET DRVR HI/LO SIDE 14DIP
- Manufacturer
- Infineon Technologies
- Datasheet
- Price
- 0
- Stock
- 0
Product Details
- Series
- -
- Operating Temperature
- -40°C ~ 150°C (TJ)
- Gate Type
- IGBT, N-Channel MOSFET
- Rise / Fall Time (Typ)
- 70ns, 30ns
- Packaging
- Tube
- Supplier Device Package
- 8-SOP
- Input Type
- Non-Inverting
- Logic Voltage - VIL, VIH
- 1V, 3.6V
- Part Status
- Obsolete
- High Side Voltage - Max (Bootstrap)
- 600V
- Channel Type
- Single
- Current - Peak Output (Source, Sink)
- 250mA, 500mA
- Mounting Type
- Surface Mount
- Package / Case
- 8-SOIC (0.154", 3.90mm Width)
- Base Part Number
- FAN7361
- Voltage - Supply
- 10V ~ 20V
- Number of Drivers
- 1
- Driven Configuration
- High-Side
