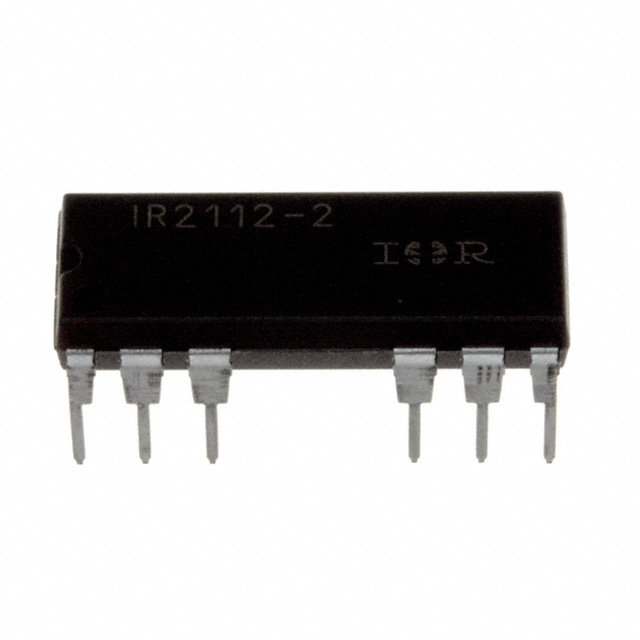

Images are for reference only. See Product Specifications for product details
Infineon Technologies IR2112-2PBF
IC MOSFET DRVR HI/LO SIDE 16DIP
- Manufacturer
- Infineon Technologies
- Datasheet
- Price
- 0
- Stock
- 0
Product Details
- Mounting Type
- Through Hole
- Package / Case
- 14-DIP (0.300", 7.62mm), 13 Leads
- Base Part Number
- IR2113-1PBF
- Voltage - Supply
- 3.3V ~ 20V
- Number of Drivers
- 2
- Driven Configuration
- Half-Bridge
- Series
- -
- Operating Temperature
- -40°C ~ 150°C (TJ)
- Gate Type
- IGBT, N-Channel MOSFET
- Rise / Fall Time (Typ)
- 25ns, 17ns
- Packaging
- Tube
- Supplier Device Package
- 14-PDIP
- Input Type
- Non-Inverting
- Logic Voltage - VIL, VIH
- 6V, 9.5V
- Part Status
- Obsolete
- High Side Voltage - Max (Bootstrap)
- 600V
- Channel Type
- Independent
- Current - Peak Output (Source, Sink)
- 2A, 2A
